Introduction

One of the most rewarding aspects of sewing is the ability to create custom garments, quilts, and repairs with a compact machine that fits on a small desk. However, like any precision tool, a compact sewing machine requires regular care to maintain stitch quality, prevent mechanical wear, and avoid unexpected breakdowns. This guide provides a thorough, step-by-step maintenance checklist that covers cleaning, oiling, and basic troubleshooting. By following the procedures, one can extend the lifespan of the machine, reduce fabric snags, and enjoy consistent performance whether one is a beginner or an experienced maker.

The checklist is organized into clearly numbered steps, each accompanied by practical product recommendations drawn from reliable Amazon listings. The recommended tools are chosen for their compatibility with compact machines, ease of use, and proven customer satisfaction. Even without purchasing the tools, the instructions remain fully actionable, ensuring that the guide delivers value to every reader.

What You'll Need

• Soft lint‑free cloths (microfiber works best)
• Small bottle of sewing machine oil (synthetic, non‑greasy)
• Small screwdriver set – flat‑head and Phillips
• Needle‑threading aid (optional but highly useful)
• Vacuum brush or handheld air blower

For convenience, the following products are recommended and linked the first time they appear:

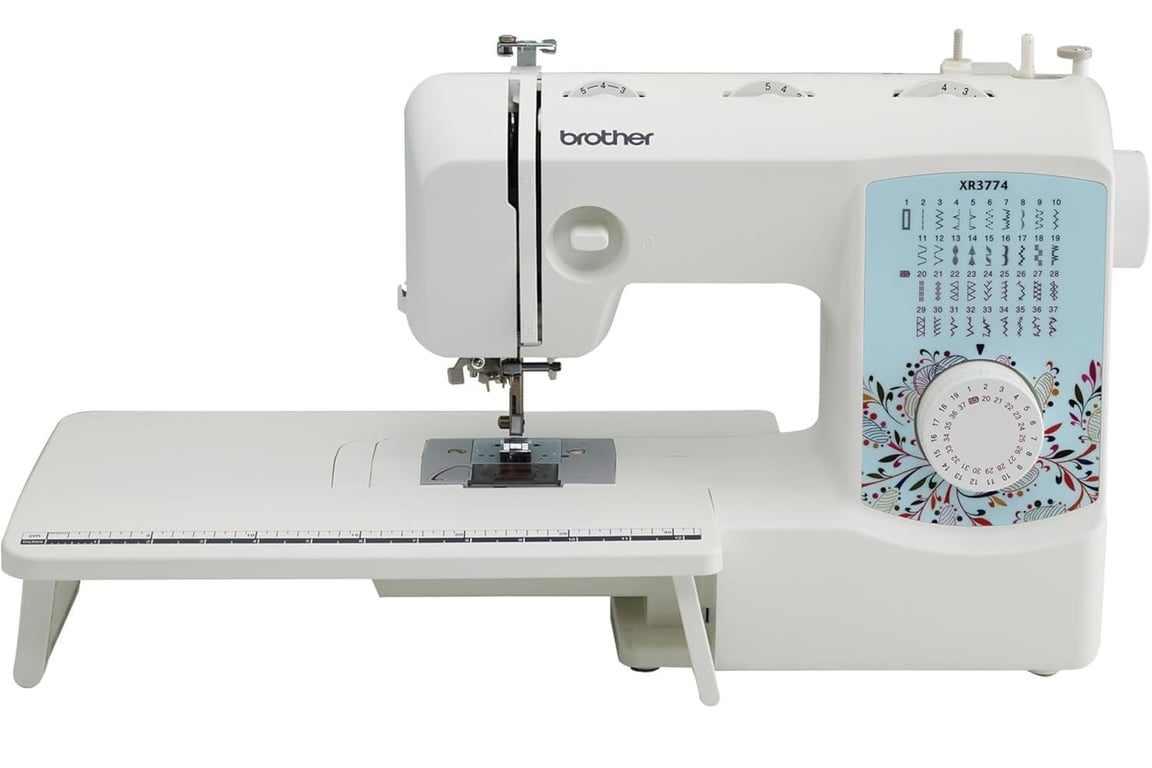

• Brother XR3774 Sewing Machine – automatic needle threader and top‑drop bobbin simplify threading and cleaning.

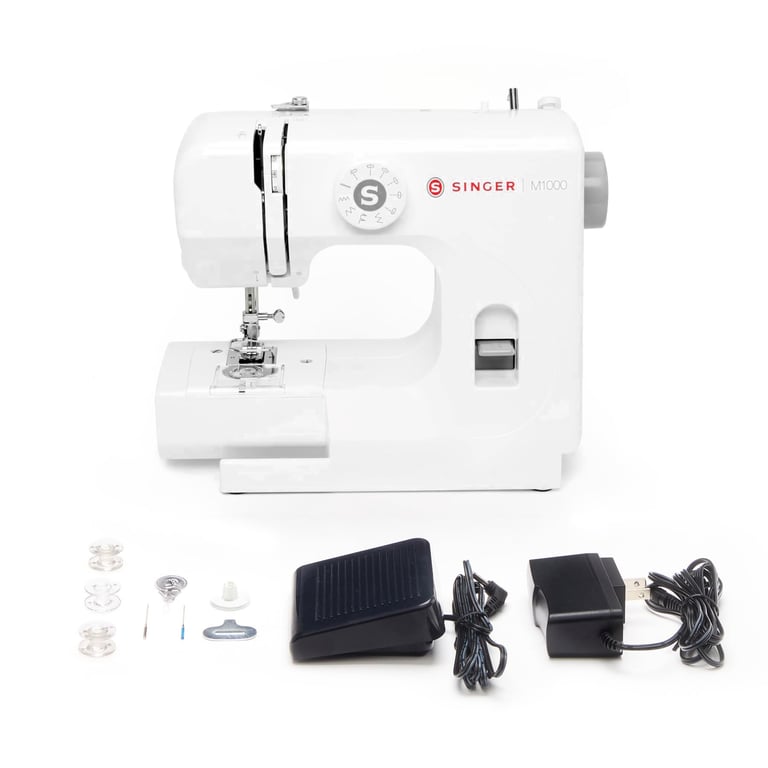

• Singer M1000 Portable Mending Machine – lightweight and includes essential accessories for quick repairs.

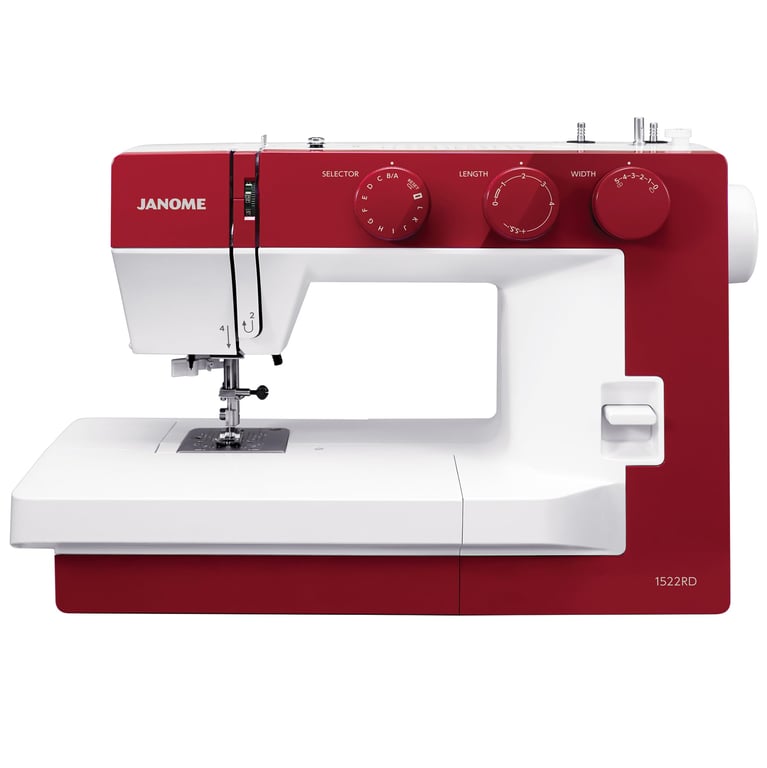

• Janome 1522RD Mechanical Sewing Machine – built‑in needle threader and robust metal frame aid in heavy‑duty maintenance.

Step 1: Power Down and Unplug

Before any maintenance, always disconnect the machine from the electrical outlet. This eliminates the risk of accidental start‑up while working on moving parts. If the machine uses a battery pack, remove it. One should also release the foot pedal and set it aside on a clean surface.

For machines that feature a built‑in needle threader, such as the Brother XR3774, powering down ensures the threader mechanism does not engage unintentionally. The XR3774 is praised for its 4.6‑star rating from over 5,500 reviewers and is priced at $184.99, making it a reliable choice for users who value convenience.

Step 2: Remove and Clean the Needle

Gently raise the presser foot and pull the needle up using the needle clamp lever. Inspect the needle for bent tips or dullness; replace it if any damage is visible. To clean the needle, wipe it with a lint‑free cloth. If the machine includes an automatic needle threader, engage it to confirm the needle moves freely.

The Janome 1522RD offers a built‑in needle threader that simplifies this step, especially for users who struggle with manual threading. Janome’s model carries a 4.4‑star rating from 122 reviews and costs $229.99, reflecting its durable metal frame and precision engineering.

Step 3: Clean the Exterior and Dust Cover

Using a soft, dry microfiber cloth, wipe the machine housing, control knobs, and the top drop‑in bobbin area. Pay special attention to the bobbin case, where lint often accumulates. For stubborn dust, lightly dampen the cloth with water (do not saturate) and immediately dry with a second cloth.

For machines with a removable dust cover, such as the Singer M1000, detach the cover and clean it separately. The M1000 is lightweight (5.5 lb), includes an all‑purpose foot and extra needle, and holds a 4‑star rating from 5,164 reviewers at $104.99. Its portability makes it ideal for on‑the‑go cleaning sessions.

Step 4: Oil the Moving Parts

Apply a few drops of high‑quality sewing machine oil to the following locations:

1. Bobbin case and surrounding metal surfaces
2. Hook area (where the bobbin thread forms the stitch)
3. Needle bar pivot point
4. Presser foot lever mechanism

Use a dropper to avoid excess oil; too much can attract lint. After oiling, rotate the handwheel several times to distribute the lubricant evenly. The oil should be thin‑film, synthetic, and specifically labeled for sewing machines to prevent gum formation.

Both the Brother XR3774 and Janome 1522RD feature top‑drop bobbins that are easily accessible for oiling. Their designs reduce the chance of oil spillage compared with older side‑drop models.

Step 5: Clean the Bobbin Area and Feed Dogs

Remove the bobbin and bobbin case. Use a small vacuum brush or a handheld air blower to clear lint from the bobbin chamber, feed dogs, and the area beneath the needle plate. If lint remains, gently brush it away with a soft paintbrush.

For machines that include a free arm, such as the Brother XR3774, ensure the free arm is also cleared of debris. The free arm expands the sewing envelope for cuffs and sleeves, and lint buildup can cause uneven feeding.

Step 6: Check Tension Settings

After cleaning, re‑thread the machine using the automatic needle threader (if available) or manually. Set the upper thread tension to the middle position (usually number 4 on a 0‑9 scale). Verify the bobbin tension by ensuring the bobbin case springs lightly when pressed.

Testing a simple straight stitch on a scrap piece of fabric will reveal whether the tension is balanced. If the stitch appears loose on the top, increase tension slightly; if it puckers on the underside, decrease tension.

Step 7: Perform a Test Stitch and Adjust

Place a scrap fabric under the presser foot, select a basic straight stitch, and sew a short line. Observe the stitch formation:

• Even stitch length and width
• No thread bunching
• Consistent feed without skipping

If any irregularities occur, revisit the cleaning and oiling steps, or consult the troubleshooting section below.

Step 8: Store the Machine Properly

When not in use, cover the machine with its supplied dust cover (included with the Brother XR3774 and Janome 1522RD). Store the machine in a dry environment away from direct sunlight and extreme temperature fluctuations. For portable models like the Singer M1000, keep the machine in its original case to protect delicate components.

Consider attaching a small moisture‑absorbing packet inside the cover to prevent rust on metal parts, especially in humid climates.

Tips & Pro Tips

• Use the automatic needle threader whenever possible. It reduces eye strain and speeds up the threading process, which is especially helpful after cleaning the needle area.
• Never use household oil or WD‑40. These products are too thick and can gum up the gears, leading to stitch irregularities.
• Schedule monthly maintenance. Even if the machine is used lightly, dust accumulates over time and can affect performance.
• Keep a spare set of needles. A dull needle can damage fabric and cause tension issues.
• Document any unusual noises. Recording the sound and when it occurs helps technicians diagnose problems quickly.

Troubleshooting

Problem: Skipping Stitches

Cause: Lint in the feed dogs or worn needle.

Solution: Clean the feed dogs (Step 5) and replace the needle with a new one of appropriate size.

Problem: Thread Breaks Frequently

Cause: Incorrect tension or damaged bobbin.

Solution: Re‑thread the machine using the automatic threader, check bobbin tension, and replace the bobbin if it is warped.

Problem: Machine Makes Grinding Noise

Cause: Insufficient lubrication or debris in the hook area.

Solution: Apply a few drops of oil to the hook (Step 4) and ensure the area is free of lint.

Conclusion

Maintaining a compact sewing machine does not require specialized tools or extensive technical knowledge. By following this comprehensive checklist—powering down, cleaning, oiling, checking tension, and storing correctly—one can ensure reliable stitch quality and prolong the machine's service life. The recommended products, such as the Brother XR3774, Singer M1000, and Janome 1522RD, provide valuable features that simplify many of these steps, but the core principles remain the same for any compact model. Regular upkeep empowers creators to focus on design rather than equipment failure.

Products Mentioned in This Guide

Frequently Asked Questions

How often should I clean my compact sewing machine?

Clean the machine after every 5–6 hours of use or at least once a week to remove lint and dust.

What type of oil is best for a compact sewing machine?

Use a lightweight synthetic sewing machine oil specifically formulated for high‑speed, compact mechanisms.

Can I use regular household oil instead of sewing machine oil?

No; household oils can gum up gears and attract lint, reducing stitch quality and causing wear.

How do I lubricate the needle bar and bobbin area?

Apply a drop of oil to the needle bar’s moving parts and a tiny amount to the bobbin case’s pivot points, then wipe excess with a lint‑free cloth.

What are common signs that my compact machine needs maintenance?

Thread breaks, uneven stitches, squeaking noises, or fabric snagging indicate cleaning, oiling, or part inspection is required.
